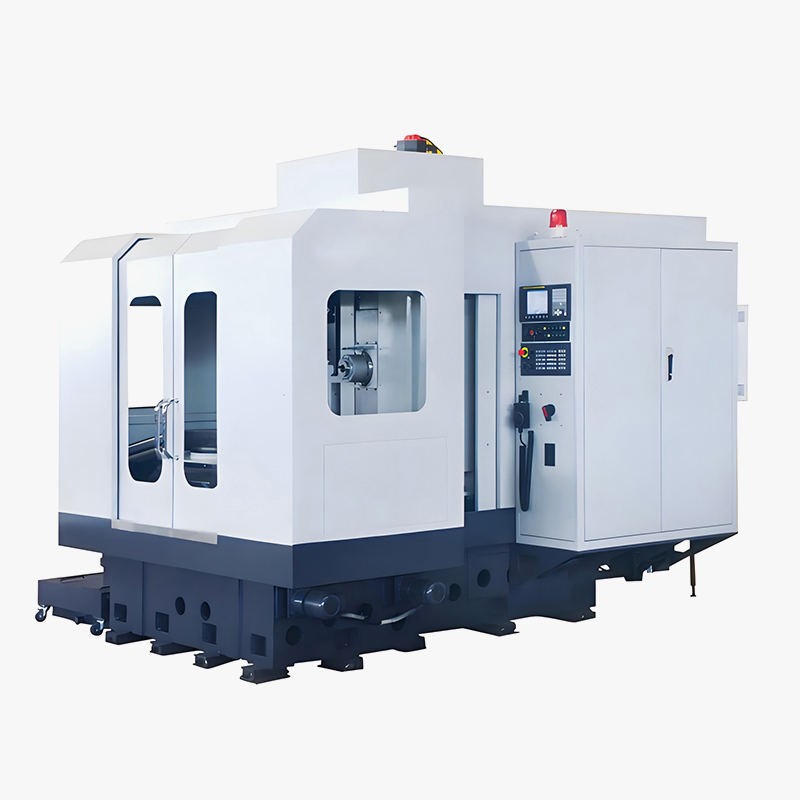

HS1000 Horizontal Machining Center

HS1000 Horizontal Machining Center

Product features ：

· Efficient machining, greatly improving production capacity; multi-process integration, quick tool change, high speed cutting.

· Ultra-precision to ensure processing quality; precision transmission, stable structure.

· Intelligent and advanced, optimize the processing process; automatic operation, remote monitoring and diagnosis.

· Strong adaptability to meet multiple needs; wide application (aerospace, complex surface, automobile manufacturing, mold manufacturing, large parts heavy cutting, etc.), customized services.

· Especially for the diversified and multifaceted mechanical processing of complex boxes, it has its unique advantages.


0.00
0.00


Product features ：

· Efficient machining, greatly improving production capacity; multi-process integration, quick tool change, high speed cutting.

· Ultra-precision to ensure processing quality; precision transmission, stable structure.

· Intelligent and advanced, optimize the processing process; automatic operation, remote monitoring and diagnosis.

· Strong adaptability to meet multiple needs; wide application (aerospace, complex surface, automobile manufacturing, mold manufacturing, large parts heavy cutting, etc.), customized services.

· Especially for the diversified and multifaceted mechanical processing of complex boxes, it has its unique advantages.



· Efficient machining, greatly improving production capacity; multi-process integration, quick tool change, high speed cutting.

· Ultra-precision to ensure processing quality; precision transmission, stable structure.

· Intelligent and advanced, optimize the processing process; automatic operation, remote monitoring and diagnosis.

· Strong adaptability to meet multiple needs; wide application (aerospace, complex surface, automobile manufacturing, mold manufacturing, large parts heavy cutting, etc.), customized services.

· Especially for the diversified and multifaceted mechanical processing of complex boxes, it has its unique advantages.


type

HS1000

route or distance of travel

1300*1100*1300

bed dimension

1000*1000

T-shaped groove

5-22*180

Maximum load capacity of workbench (kg)

2600

Distance from the workbench to the spindle end face

250-1550

principal axis


taper

BT50

speed

Panty belt 6000

Motor power MITSUBISHI

18.5

Single machine power *Fanuc

22

triaxial


Motor power MITSUBISH (three shaft)

4.5/4.5/4.5

Single machine power * Fanuc (three axes)

4.5/4.5/4.5

Guide rail specifications

X axis roller guide 55 Y axis roller guide 55 Z axis roller guide 55

Shaft specifications

XYZ5010、5010、5010

G01 feed speed

1-10000

G00 Fast move speed

24/24/24

positioning accuracy

±0.005/300

Repeat positioning accuracy

±0.003/300

tool magazine


Mechanical tool library

24

Time to change the blade

1.8-2.2

Maximum tool length

350

Maximum tool diameter (full tool)

110

Maximum tool diameter (adjacent blank)

220

Maximum tool weight (kg)

15

other


Machine weight (kg)

13500

Electricity demand

45

Air pressure requirements

6
