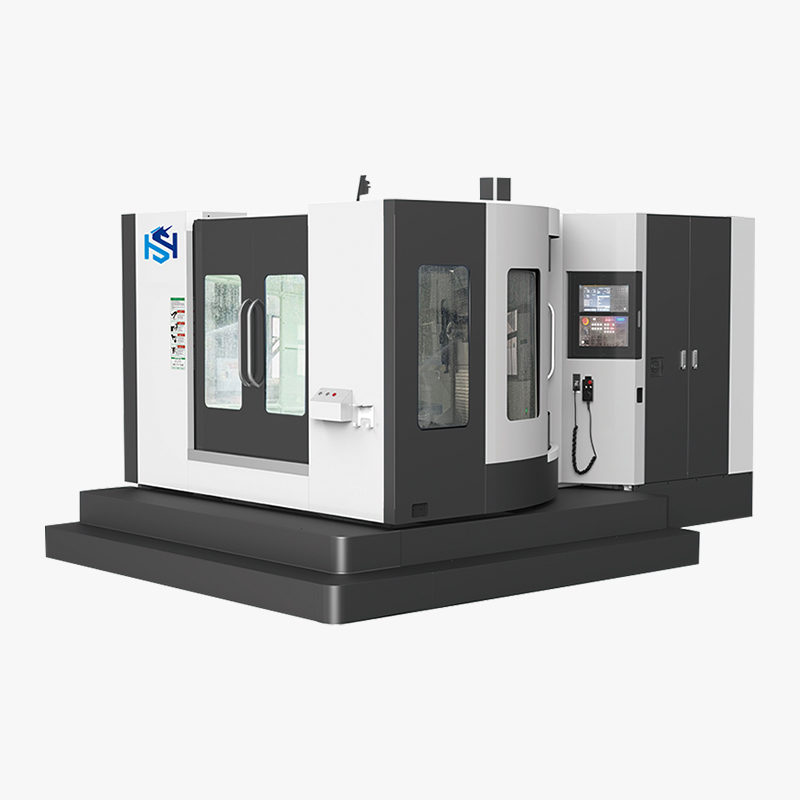

HS800 Horizontal Machining Center

Product features ：

· Efficient machining, greatly improving production capacity; multi-process integration, quick tool change, high speed cutting.

· Ultra-precision to ensure processing quality; precision transmission, stable structure.

· Intelligent and advanced, optimize the processing process; automatic operation, remote monitoring and diagnosis.

· Strong adaptability to meet multiple needs; wide application (aerospace, complex surface, automobile manufacturing, mold manufacturing, large parts heavy cutting, etc.), customized services.

· Especially for the diversified and multifaceted mechanical processing of complex boxes, it has its unique advantages.

List price： 0.00

Price： 0.00

Product features ：

· Efficient machining, greatly improving production capacity; multi-process integration, quick tool change, high speed cutting.

· Ultra-precision to ensure processing quality; precision transmission, stable structure.

· Intelligent and advanced, optimize the processing process; automatic operation, remote monitoring and diagnosis.

· Strong adaptability to meet multiple needs; wide application (aerospace, complex surface, automobile manufacturing, mold manufacturing, large parts heavy cutting, etc.), customized services.

· Especially for the diversified and multifaceted mechanical processing of complex boxes, it has its unique advantages.

· Efficient machining, greatly improving production capacity; multi-process integration, quick tool change, high speed cutting.

· Ultra-precision to ensure processing quality; precision transmission, stable structure.

· Intelligent and advanced, optimize the processing process; automatic operation, remote monitoring and diagnosis.

· Strong adaptability to meet multiple needs; wide application (aerospace, complex surface, automobile manufacturing, mold manufacturing, large parts heavy cutting, etc.), customized services.

· Especially for the diversified and multifaceted mechanical processing of complex boxes, it has its unique advantages.

type	HS800
route or distance of travel	130011001300
bed dimension	800*800
T-shaped groove	5-18*100
Maximum load capacity of workbench (kg)	2600
Distance from the workbench to the spindle end face	250-1550
principal axis
taper	BT50
speed	Panty belt 6000
Motor power MITSUBISHI	18.5
Single machine power *Fanuc	22
triaxial
Motor power MITSUBISH (three shaft)	4.5/4.5/4.5
Single machine power * Fanuc (three axes)	4.5/4.5/4.5
Guide rail specifications	X axis roller guide 55 Y axis roller guide 55 Z axis roller guide 55
Shaft specifications	XYZ5010、5010、5010
G01 feed speed	1-10000
G00 Fast move speed	24/24/24
positioning accuracy	±0.005/300
Repeat positioning accuracy	±0.003/300
tool magazine
Mechanical tool library	24
Time to change the blade	1.8-2.2
Maximum tool length	350
Maximum tool diameter (full tool)	110
Maximum tool diameter (adjacent blank)	220
Maximum tool weight (kg)	15
other
Machine weight (kg)	12500
Electricity demand	45
Air pressure requirements	6
