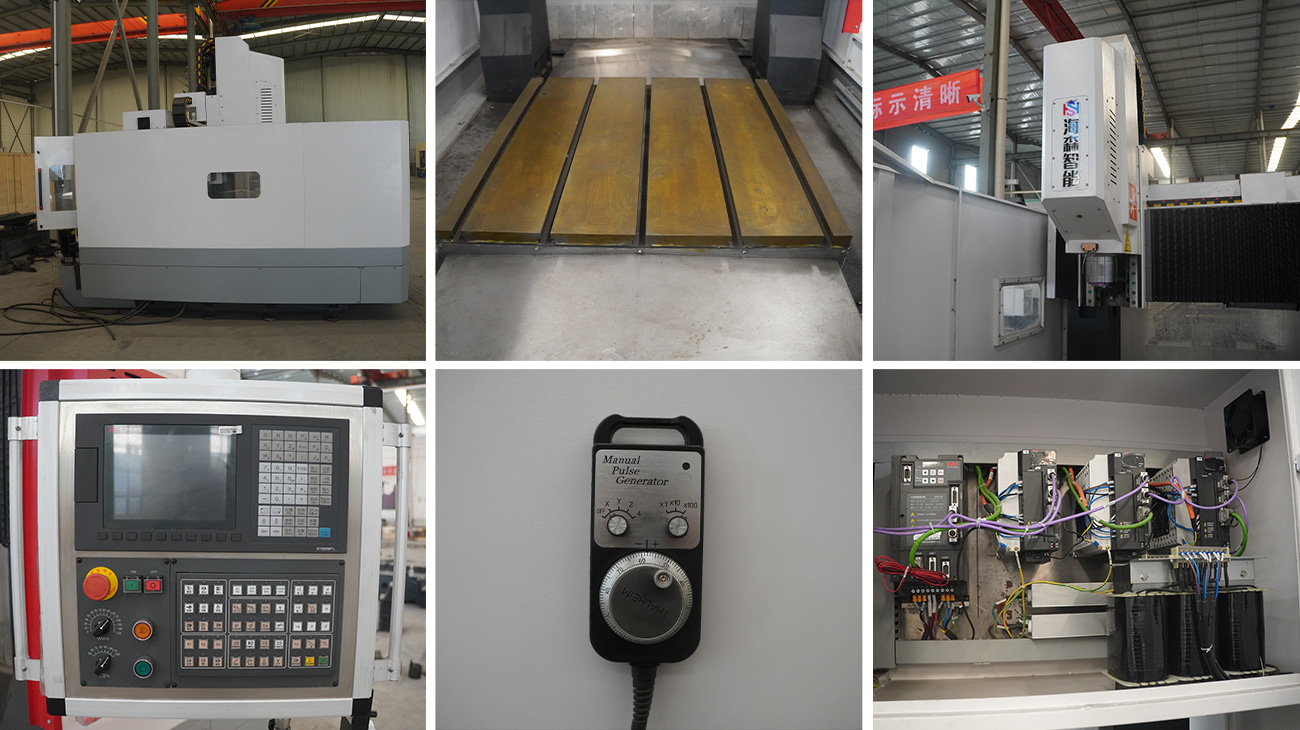

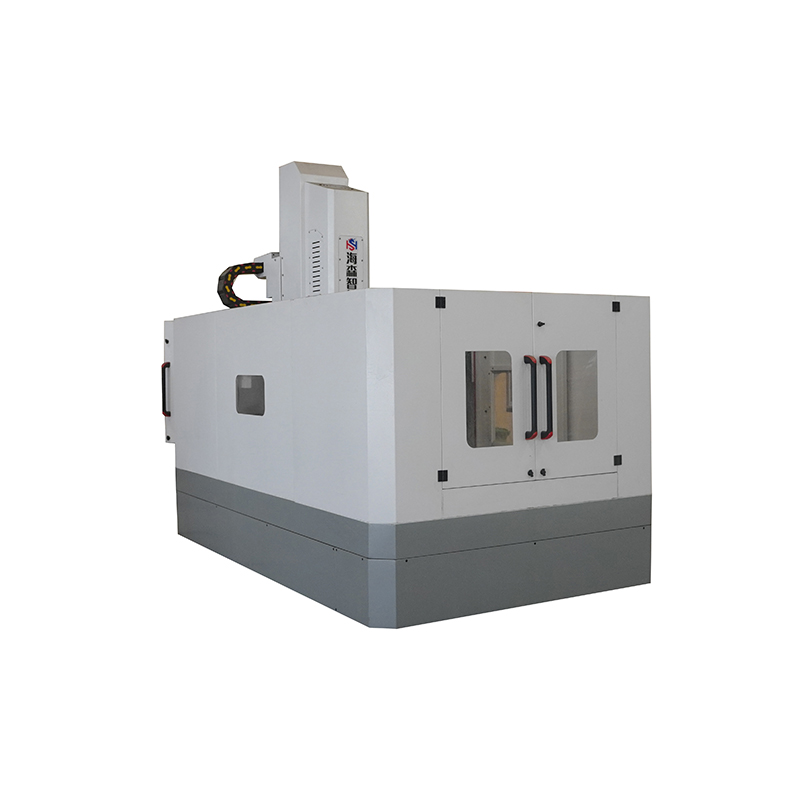

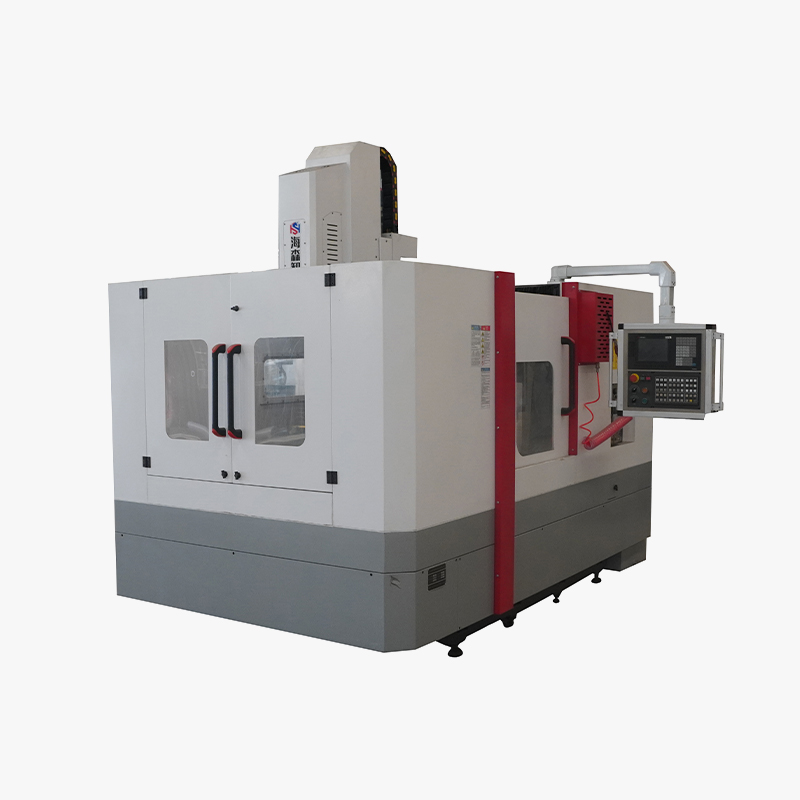

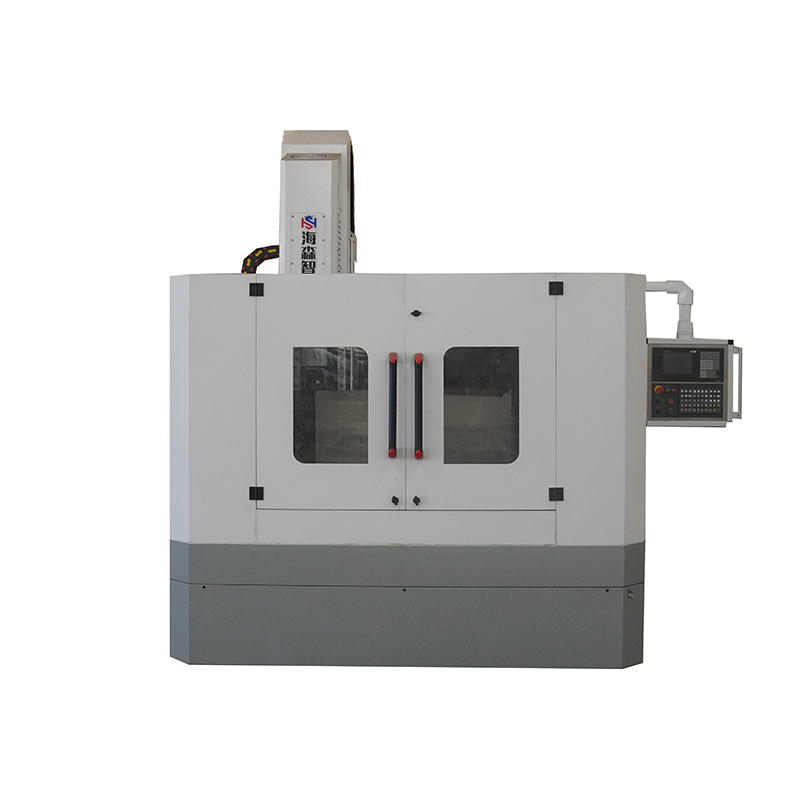

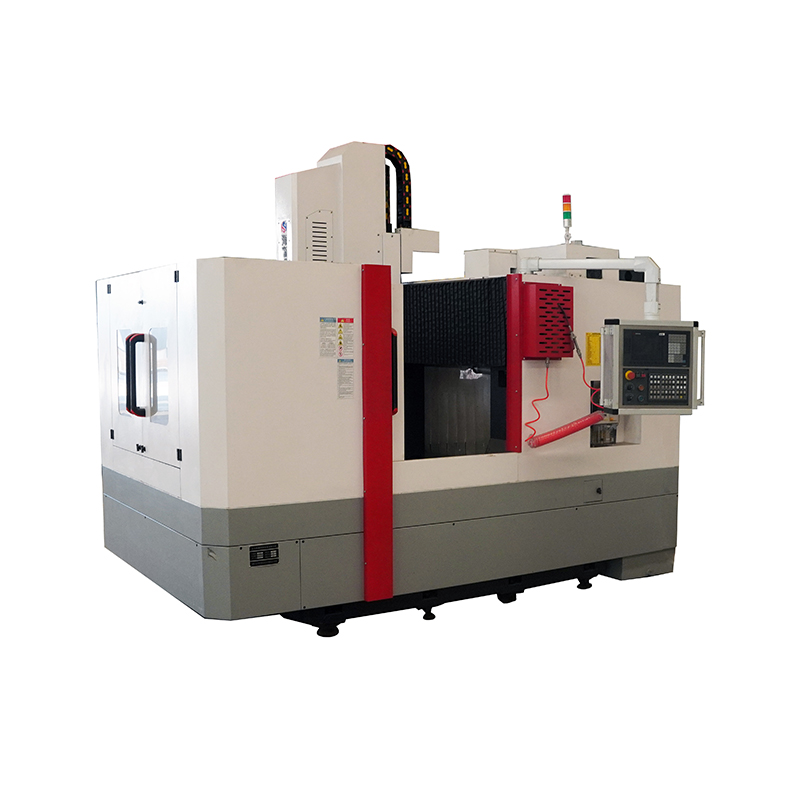

route or distance of travel

Left travel (X) (mm)

800

Front travel (Y (mm)

550

Up and down stroke (Z) (mm)

550

Distance from the center of the spindle to the guide rail slider of the column (mm)

590

Distance from spindle end face to work table surface (mm)

120-670

staging

bed dimension

550×1000

Workbench T-slot (number-size x spacing)

5-18×90

Maximum load kg

550

principal axis

Standard spindle (model/installation size)

Belt type BT40/φ150

Standard spindle motor power (KW)

7.5/11KW

Shaft speed (r/min)

8000 (belts)

tool magazine

Knife library capacity (pieces)

24

Maximum tool diameter/length/weight

φ78/300/8

Knife changing time (solid disk type)

1.75

transmission

Specifications of ball screws for X, Y and Z axes

4016

X, Y, Z axis quick movement speed (m/min)

X:24Y:24 Z:24

Specifications of X, Y and Z axis rails

X:35 Y:45 Z:45

Connection mode of X, Y and Z motors

direct connection

any power-generating or power-driven machine

Main motor parameters (power KW)

7.5~11

torsion N.m

35.8

aggregate capacity （KW）

25

accuracy

positioning accuracy （mm）

0.01

Repeat positioning accuracy (mm)

0.006

other

Machine weight (ton)

6

Overall size of the machine

2700×2250×2700

system

No programming for FANUC

(Nexa, Mitsubishi, KND)
