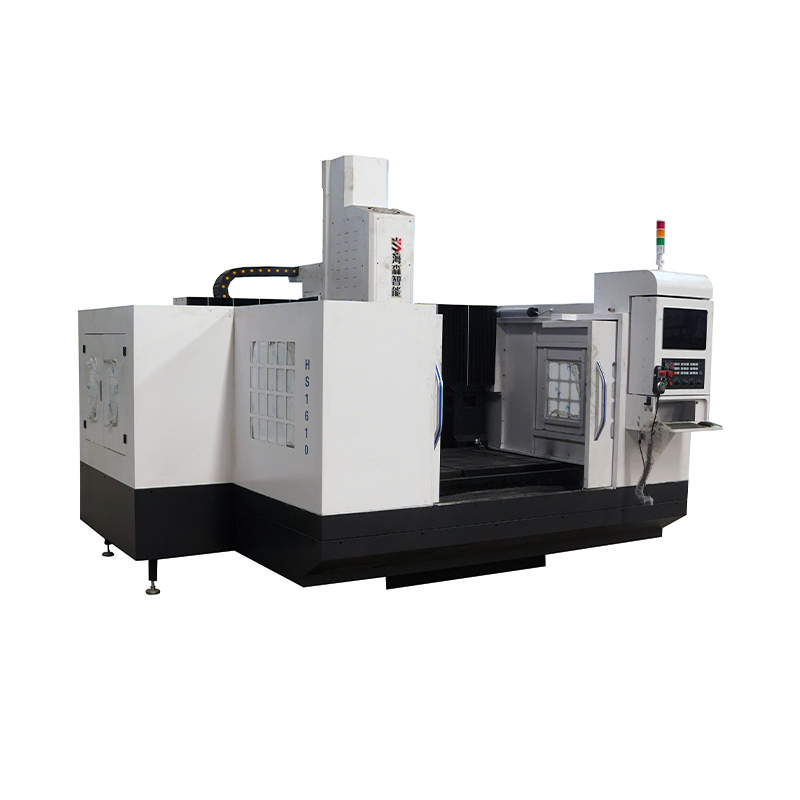

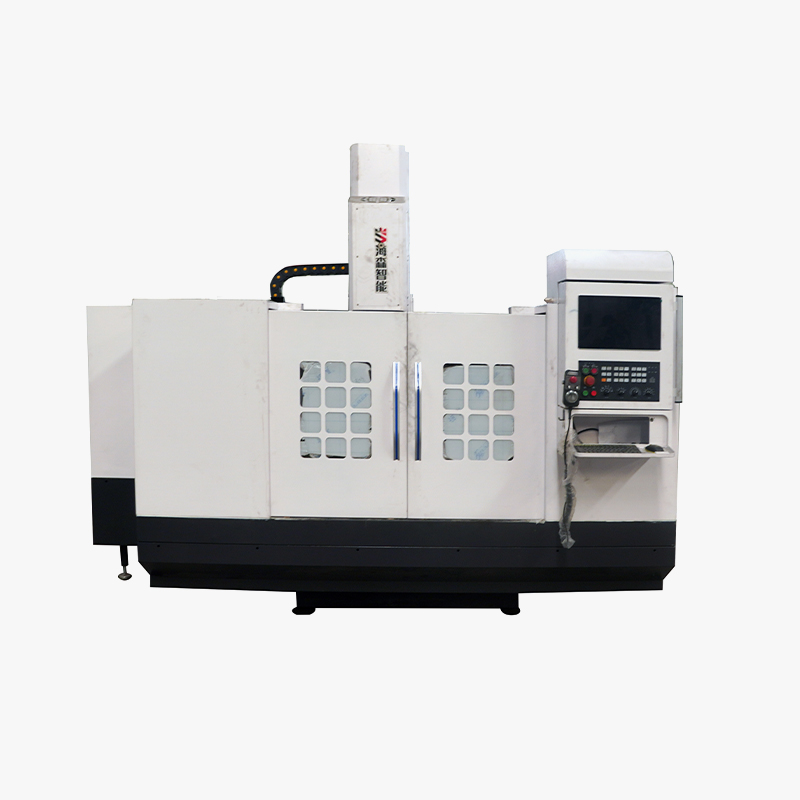

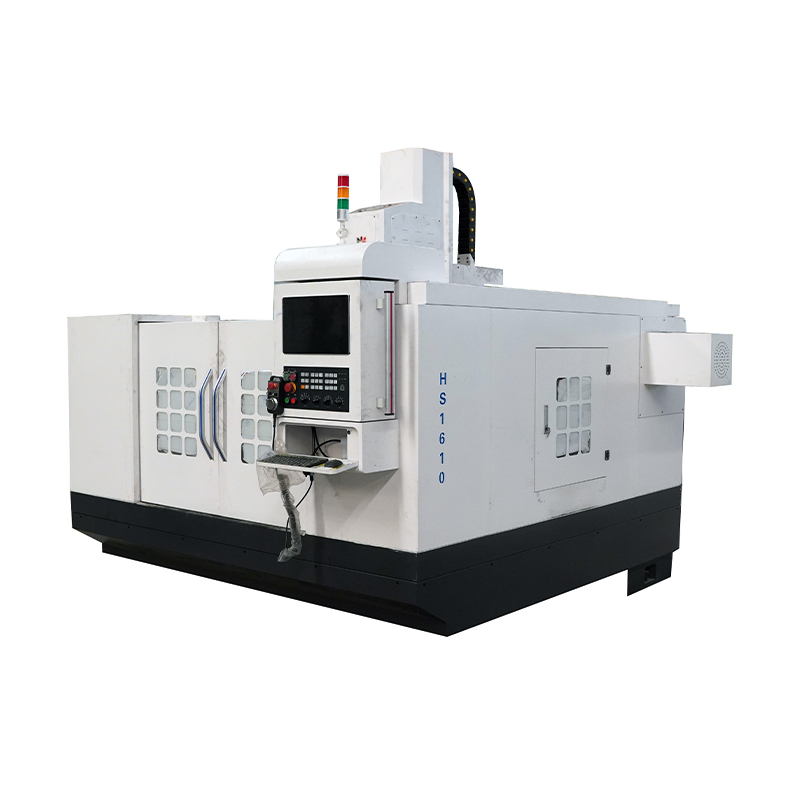

route or distance of travel

Left travel (X) (mm)

1100

Front travel (Y (mm)

600

Up and down stroke (Z) (mm)

600

Distance from the center of the spindle to the guide rail slider of the column (mm)

600

Distance from spindle end face to work table surface (mm)

120-670

staging

bed dimension

600×1200

Workbench T-slot (number-size x spacing)

5-18×100

Maximum load kg

800

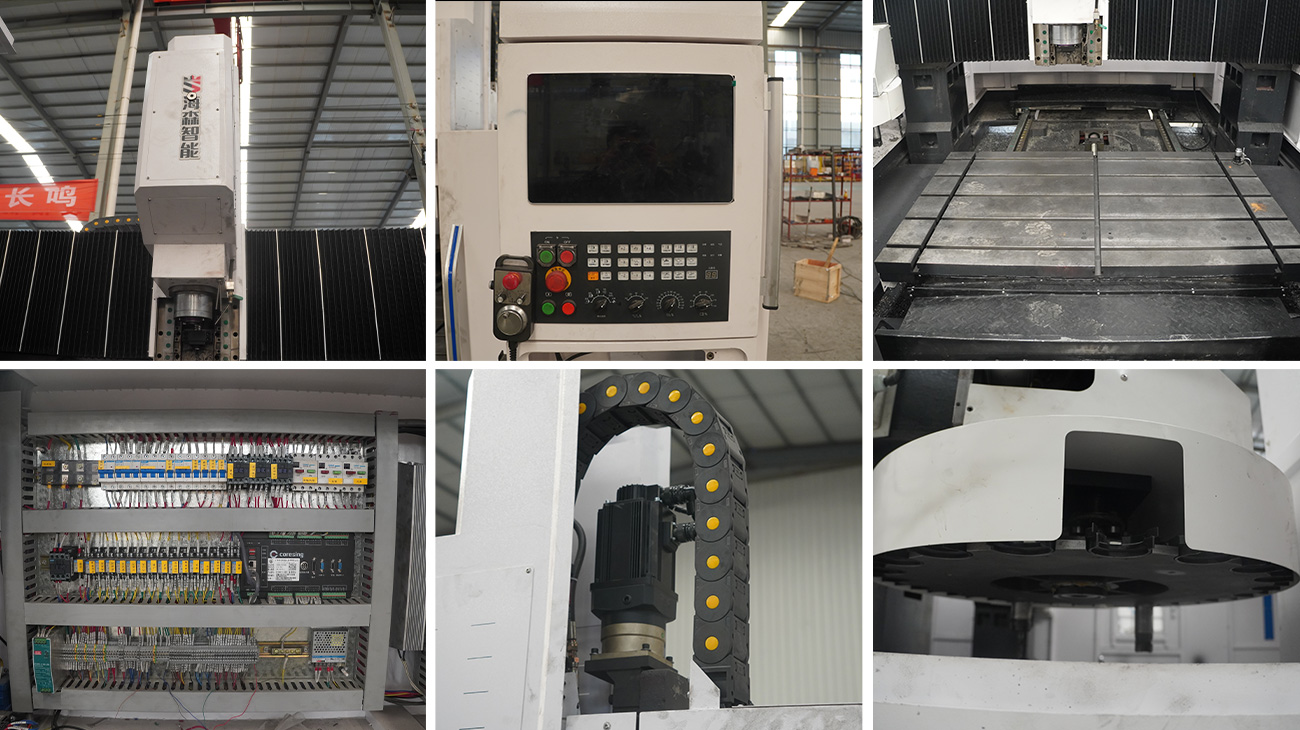

principal axis

Standard spindle (model/installation size)

Belt type BT40/ medium 150

Standard spindle motor power (KW)

11/15KW

Shaft speed (r/min)

8000 (belts)

tool magazine

Knife library capacity (pieces)

24

Maximum tool diameter/length/weight

Class 78/300/8

Knife changing time (solid disk type)

1.75

transmission

Specifications of ball screws for X, Y and Z axes

4012

X, Y, Z axis quick movement speed (m/min)

24、24、24

Specifications of X, Y and Z axis rails

XYZ:RGH45HA

Connection mode of X, Y and Z motors

direct connection

any power-generating or power-driven machine

Main motor parameters (power KW)

11~15

torsion N.m

52.7

aggregate capacity （KW）

30

accuracy

positioning accuracy （mm）

0.01

Repeat positioning accuracy (mm)

0.006

other

Machine weight (ton)

6.8

Overall size of the machine

3150×2450×2800

system

No programming for FANUC (Nexa, Mitsubishi, KND)
