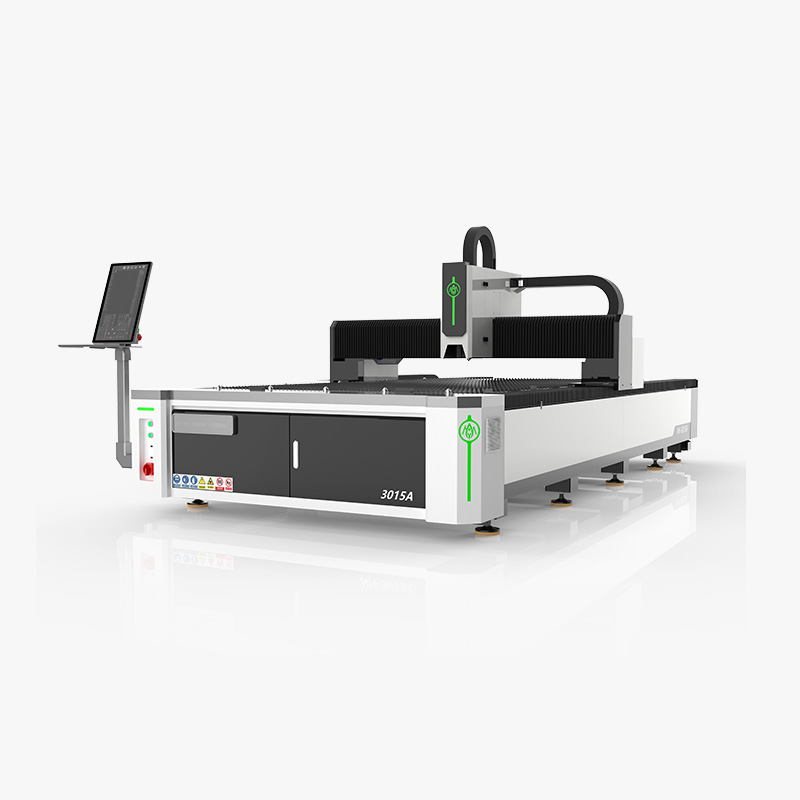

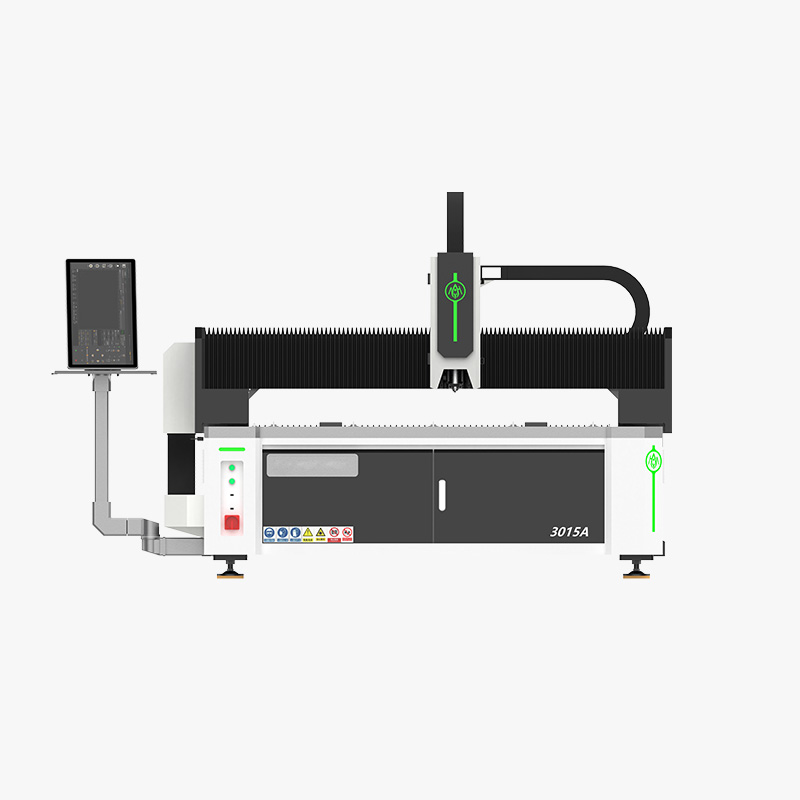

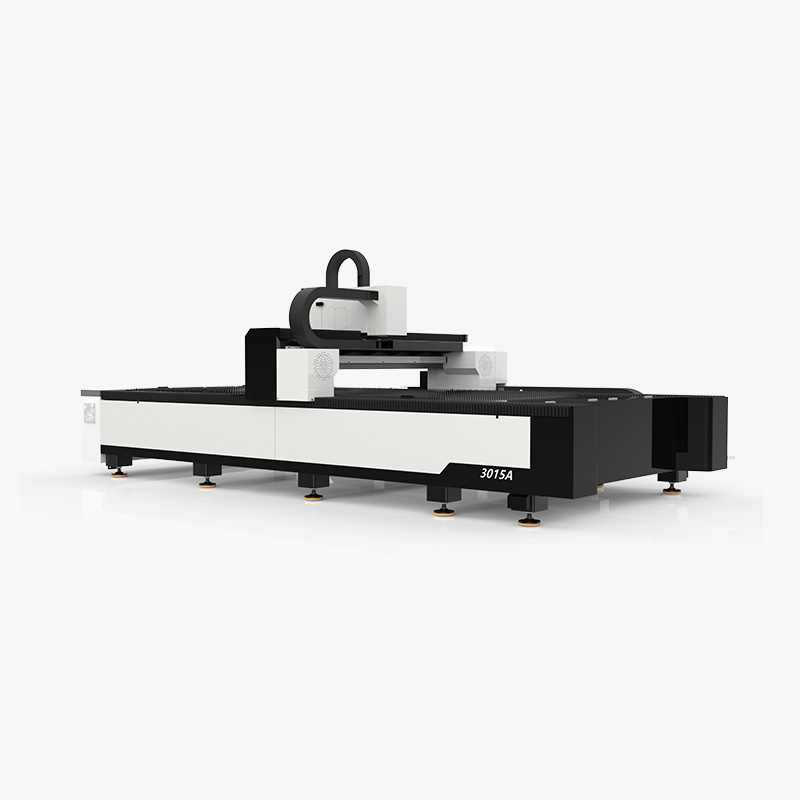

3015A Single Platform Laser Cutting Machine

3015A Single Platform Laser Cutting Machine

HIGH CUTTING PRECISION AND EFFICIENCY

Fiber laser technology provides a finer cutting effect with smooth edges and micron-level precision,reducing the need for post-processing.At the same time,its higher cutting speed significantly improves production efficiency.


0.00
0.00


HIGH CUTTING PRECISION AND EFFICIENCY

Fiber laser technology provides a finer cutting effect with smooth edges and micron-level precision,reducing the need for post-processing.At the same time,its higher cutting speed significantly improves production efficiency.


HIGH CUTTING PRECISION AND EFFICIENCY

Fiber laser technology provides a finer cutting effect with smooth edges and micron-level precision,reducing the need for post-processing.At the same time,its higher cutting speed significantly improves production efficiency.

ENERGY-EFFICIENT AND ENVIRONMENTALLY FRIENDLY

The fiber laser cutting machine uses an advanced fiber laser source with higher energy efficiency compared to

traditional laser cutting systems.It also generates less heat,reducing the impact on the surrounding environment.

WIDE MATERIAL COMPATIBILITY

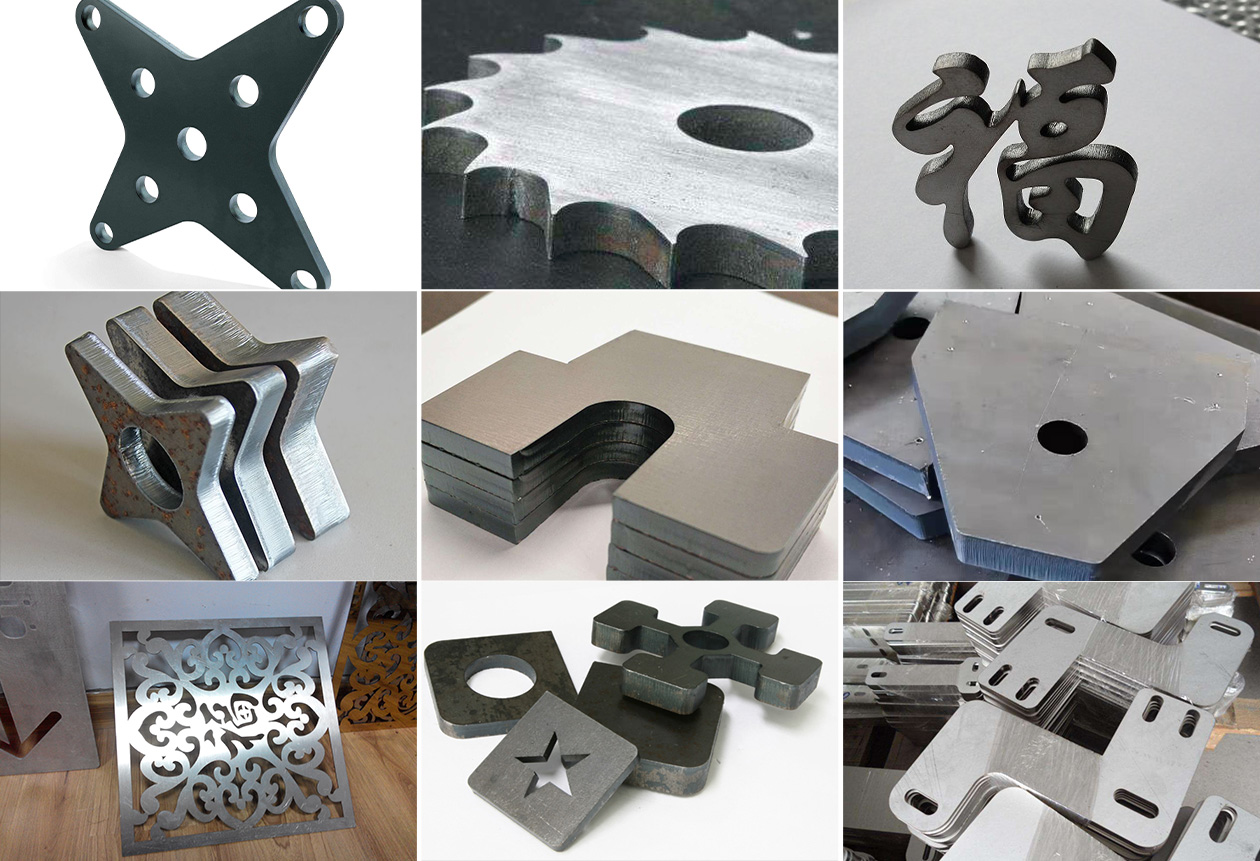

This type of cutting machine can easily handle a variety of thin metal sheets,such as stainless steel,aluminum alloy, and carbon steel,and is not limited by material thickness.It is widely used in industries like automotive,aerospace,  and home appliances for precision cutting needs.


Model

3015A

Working Area

3000×1500mm

X/Y Axis Repeat Position Accuracy

±0.02mm

Max Moving Speed

45m/min

Max Loading Weight

600kg

Working Voltage

AC 380V/50Hz

System

X3S/Cypcut/Au3Tech

Cutting Head

Raytools/Au3Tech

Laser Device

Raycus/Max/Reci/IPG/BWT

Motor Drive

Leadshine/ Yaskawa

Precision Linear Guide

Hiwin

Gear Rack

YYC

Electronic Components

Schneider

Reducer System

Japan Shimpo

Pneumatic Components

Japan SMC

Water Chiller

S&A

Power Supply

1.5kw/3kw/6kw/12kw
