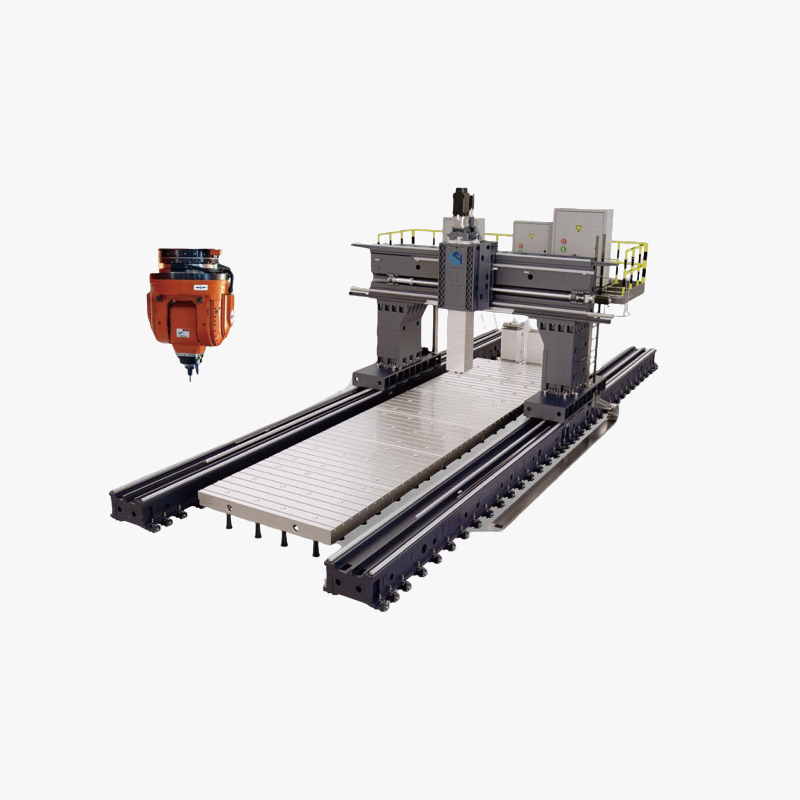

HS10042/12040/16042 Dynamic column series gantry machining center

Product features ：

· The design of moving column is mainly tailored for extra-long or extra-heavy workpieces;

· The workbench adopts intensive rib plate layout to ensure that the whole machine has enough strength and rigidity, with a load of 7 tons per square meter;

· The base adopts a nearly square design to provide the requirements of high reliability base for the gantry and meet the best motion straightness;

· The sliding pillow is designed with a super large section size (500x500), which has strong rigidity and good vibration resistance, ensuring the stability of processing and better processing accuracy.

List price： 0.00

Price： 0.00

Product features ：

· The design of moving column is mainly tailored for extra-long or extra-heavy workpieces;

· The workbench adopts intensive rib plate layout to ensure that the whole machine has enough strength and rigidity, with a load of 7 tons per square meter;

· The base adopts a nearly square design to provide the requirements of high reliability base for the gantry and meet the best motion straightness;

· The design of moving column is mainly tailored for extra-long or extra-heavy workpieces;

· The workbench adopts intensive rib plate layout to ensure that the whole machine has enough strength and rigidity, with a load of 7 tons per square meter;

· The base adopts a nearly square design to provide the requirements of high reliability base for the gantry and meet the best motion straightness;

project		HS10042	HS12040	HS16042
	Longitudinal effective width	4200	4000	4200
route or distance of travel	X axis stroke (mm)	10500	12000	16500
	Y axis stroke (mm)	4600	4200	4600
	Z axis travel (mm)	1250/1450	1250/1450	1250/1450
	Distance from spindle end face to work table surface (mm)	200-1450/1650	200-1450/1650	200-1450/1650
	Maximum gate height (mm)	1650/1900	1650/1850	1650/1850
staging	bed dimension	10000×3500	12000×4000	16000×3500
	Workbench T-slot	28	28	28
	Maximum load kg	3000/m²	3000/m²	3000/m²
principal axis	Shaft (model/installation size)	BT50-220	BT 50-220	BT 50-220
	Main shaft motor power (KW)	30/37	30/37	30/37
	torsion N·m	191/236	191/236	191/236
	Shaft speed (r/min)	50-4000	50-4000	50-4000
transmission	Specifications of ball screws for X, Y and Z axes	6310/8020/5M/6M rack	6310/8020/5M/6M rack	6310/8020/5M/6M rack
	X, Y, Z axis quick movement speed (m/min)	10/12/12	10/12/12	10/12/12
	X, Y, Z axis roller rail specifications	RG554/RG553/RG55*4
	Specifications of X, Y and Z three shaft couplings	80/95/95	80/95/95	80/95/95
	Connection mode of X, Y and Z motors	gear case	gear case	gear case
	X-axis gap elimination method	Double motor + gearbox clearance	Double motor + gearbox clearance	Double motor + gearbox clearance
accuracy	positioning accuracy （mm）	0.035	0.035	0.035
accuracy	Repeat positioning accuracy (mm)	0.020	0.020	0.020
apolegamy	Shaft (model/installation size/speed)	BT50-8000/BT50-6000
	tool magazine	24T disc / 30T disc / 40T chain / 60T chain / 40T vertical and horizontal tool library
	Z-axis guide	Z-axis four-line guide rail (square slide pillow)	Z-axis four-line guide rail (square slide pillow)	Z-axis four-line guide rail (square slide pillow)
other	aggregate capacity （Kw）	50	50	60
	Machine weight (ton)	100	110	120
	Overall size of the machine	14500×6600×6200	21040×67200×6200	21500×6800×6200
	system	FANUC, Siemens, Heideman	FANUC, Siemens, Heidenhan	FANUC, Siemens, Heideman
