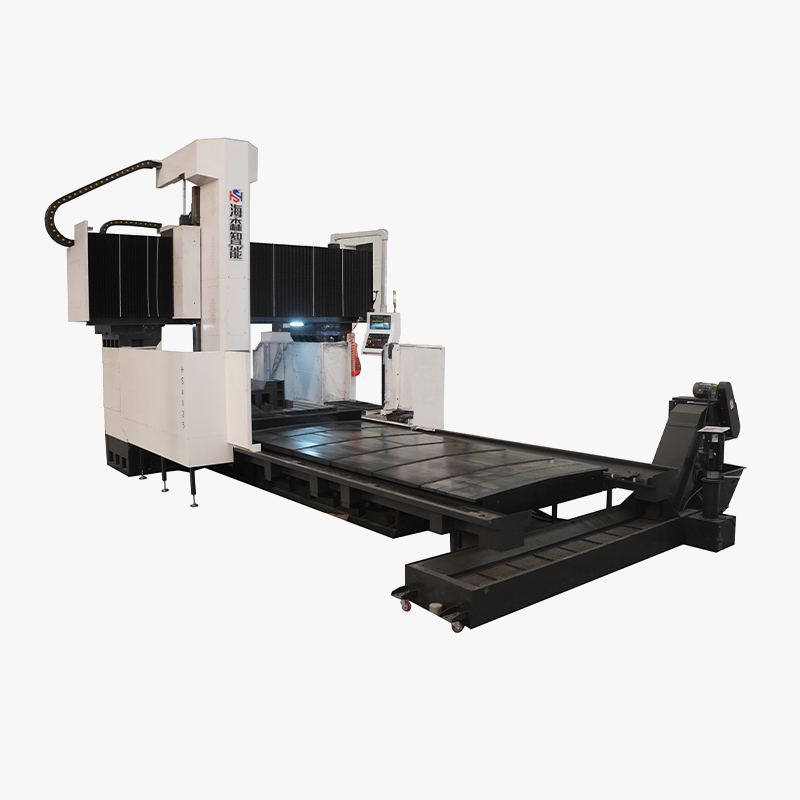

HS4025 CNC gantry boring and milling machine

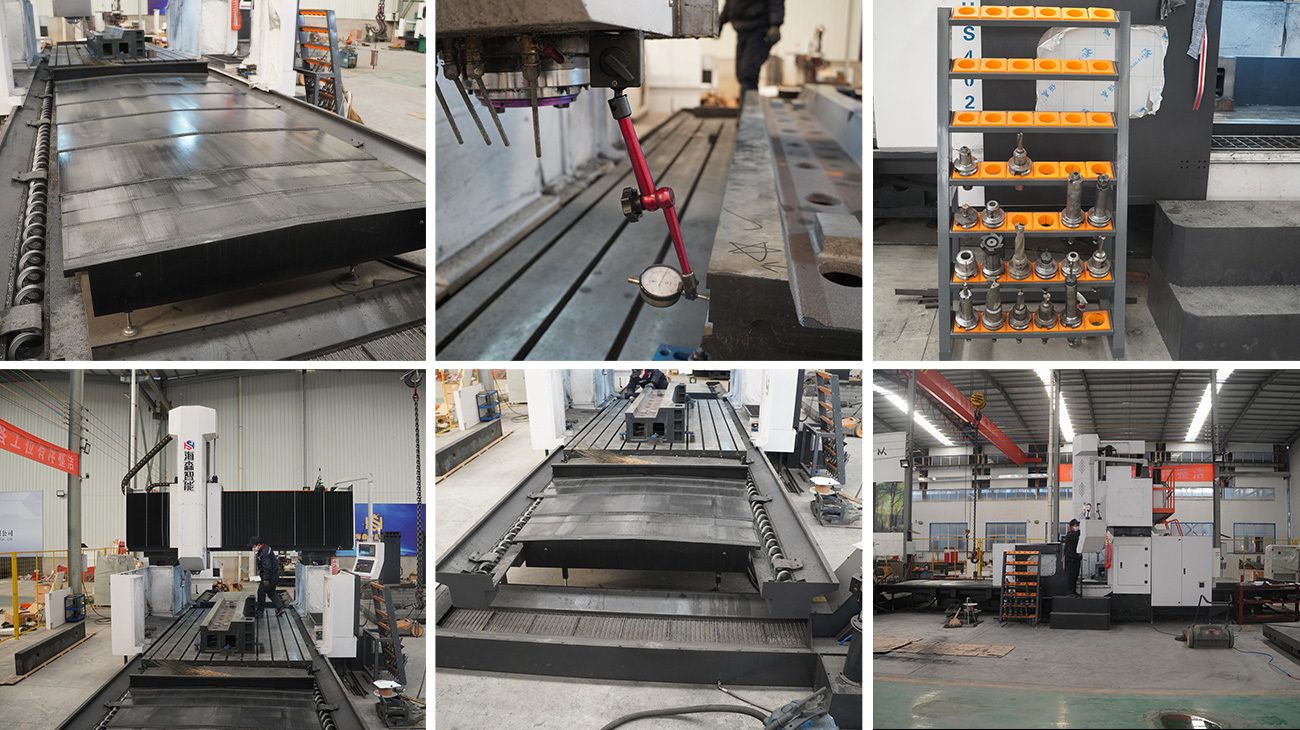

Product features

· The workbench moves on the bed (X axis), the spindle box moves on the saddle (Z axis), and the saddle and spindle box move on the crossbeam (Y axis) in a design structure.

The integral molding of resin sand (drying) casting has a reasonable structure and stable organization, which ensures the high rigidity and high geometric shape accuracy of the machine tool. It ensures that the machine tool can run precisely and stably for a long time.

· To meet the needs of multi-process processing, improve production efficiency, and adapt to the parts processing of civil aviation, automobile, energy, manufacturing and mold industries.

List price： 0.00

Price： 0.00

Product features

· The workbench moves on the bed (X axis), the spindle box moves on the saddle (Z axis), and the saddle and spindle box move on the crossbeam (Y axis) in a design structure.

· To meet the needs of multi-process processing, improve production efficiency, and adapt to the parts processing of civil aviation, automobile, energy, manufacturing and mold industries.

· The workbench moves on the bed (X axis), the spindle box moves on the saddle (Z axis), and the saddle and spindle box move on the crossbeam (Y axis) in a design structure.

· To meet the needs of multi-process processing, improve production efficiency, and adapt to the parts processing of civil aviation, automobile, energy, manufacturing and mold industries.

type	HS4025
Project		unit
staging	width	mm	2200
	length	mm	4000
	bearing	T	12
process route or distance of travel	Workbench travel (X-axis)	mm	4000
	Drum stroke	mm	2500
	ram stroke	mm	1250
	The distance between the end face of the spindle and the working table	mm	200-1450
	Height of spacing between posts (too wide)	mm	2500
	Maximum distance from the workbench to the moving beam (too high)	mm	950/1100
Main axis parameters	brand		Dan Quan / Jian Bang
	Town level		BT50
	speed	r/min	40-6000
	Main shaft motor power	KW	15/18.5122
feed	X/Y/Z rapid feed	m/min	12/L6/16
feed	X/Y/Z fastest cutting group starts	m/min	8
transmission	X/Y/Z screw specifications (optional)		636363
	Number and specification of X-axis guides (Optional number of rails)	Type/family	245 Roll heavy load guide rail
	Number of Y-axis guides / specifications (optional number of guide bars)	Type/family	21345 Roll heavy load guide rail
	Number of Z-axis guides / specifications (optional number of guide bars)	Type/family	4-45/ roller heavy load guide rail (Embracing)
accuracy	X axis (position/repetitiveness)	mm	0.025/0.02
	Y axis (positioning/repetitiveness)	mm	0.02/0.015
	Z axis (positioning/repetition)	mm	0.015/0.015
	X/Y/Z three axis servo	KW	4.44.44.4
	operating system		KND Kaindi/New Generation (Franke/Siemens)
other	Overall machine mass (approximate)	T	35
other	Overall size of the machine (approximate)	mm	10200×3800×5200
