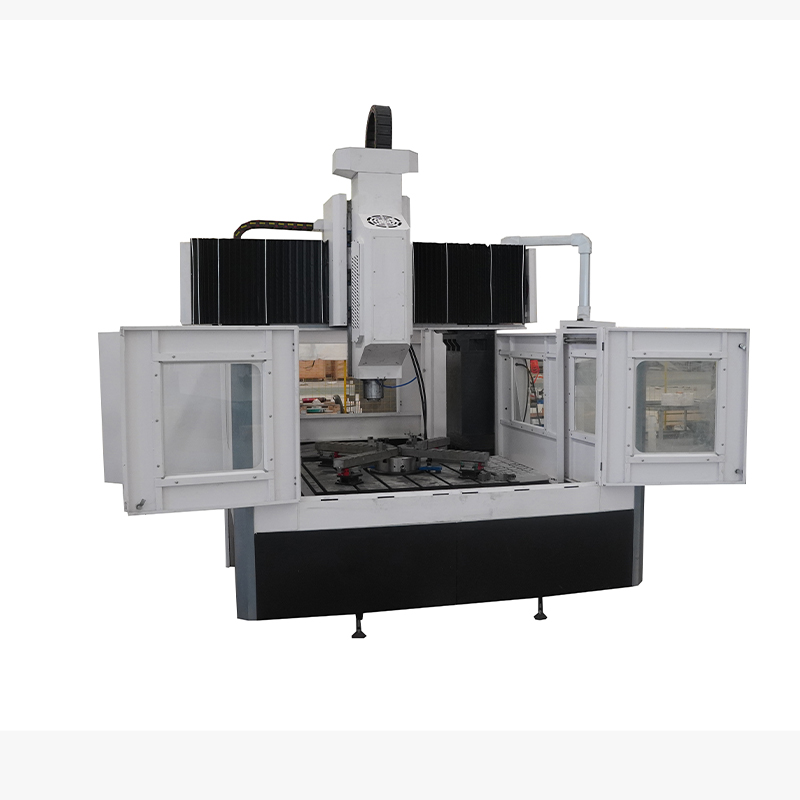

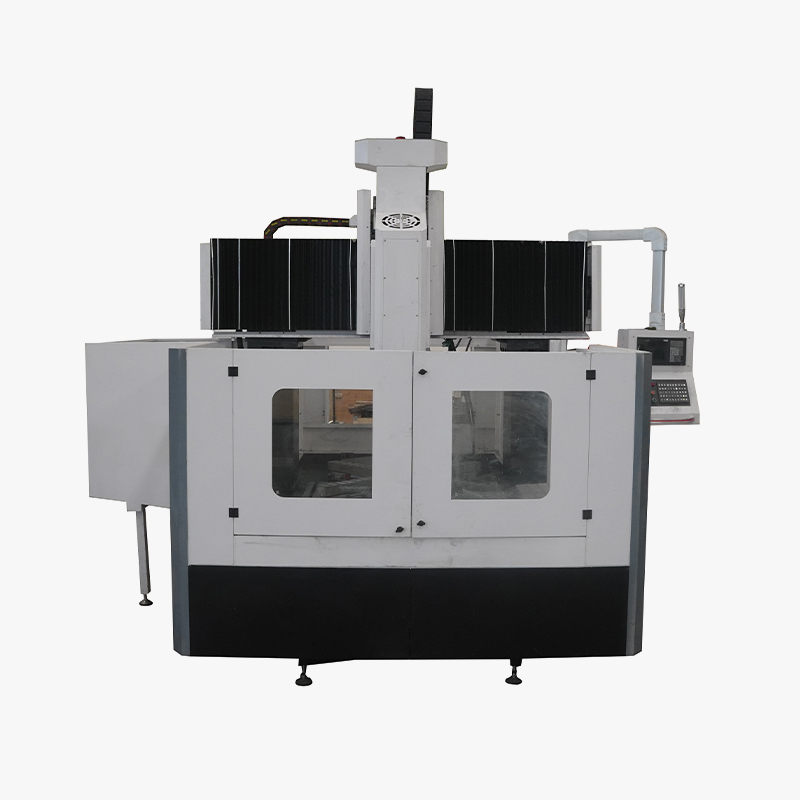

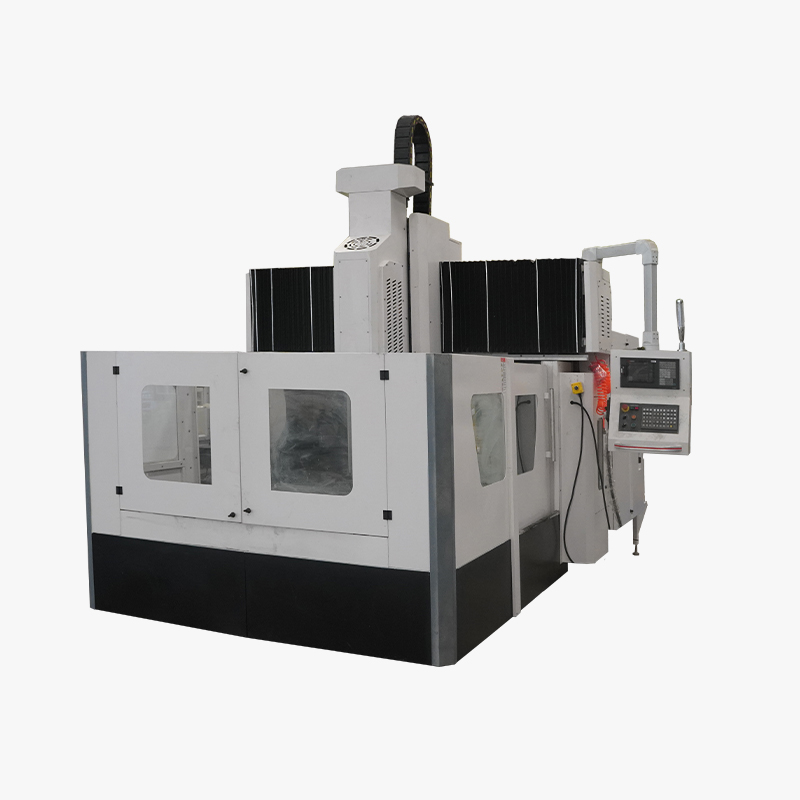

route or distance of travel

Left travel (X) (mm)

1200

Front travel (Y (mm)

700

Up and down stroke (Z) (mm)

700

Distance from the center of the spindle to the guide rail slider of the column (mm)

765

Distance from spindle end face to work table surface (mm)

75-775

staging

bed dimension

700×1360

Workbench T-slot (number-size x spacing)

5-18×152

Maximum load kg

1000

principal axis

Standard spindle (model/installation size)

Belt type BT50/155

Standard spindle motor power (KW)

15/18KW

Shaft speed (r/min)

6000 (belts)

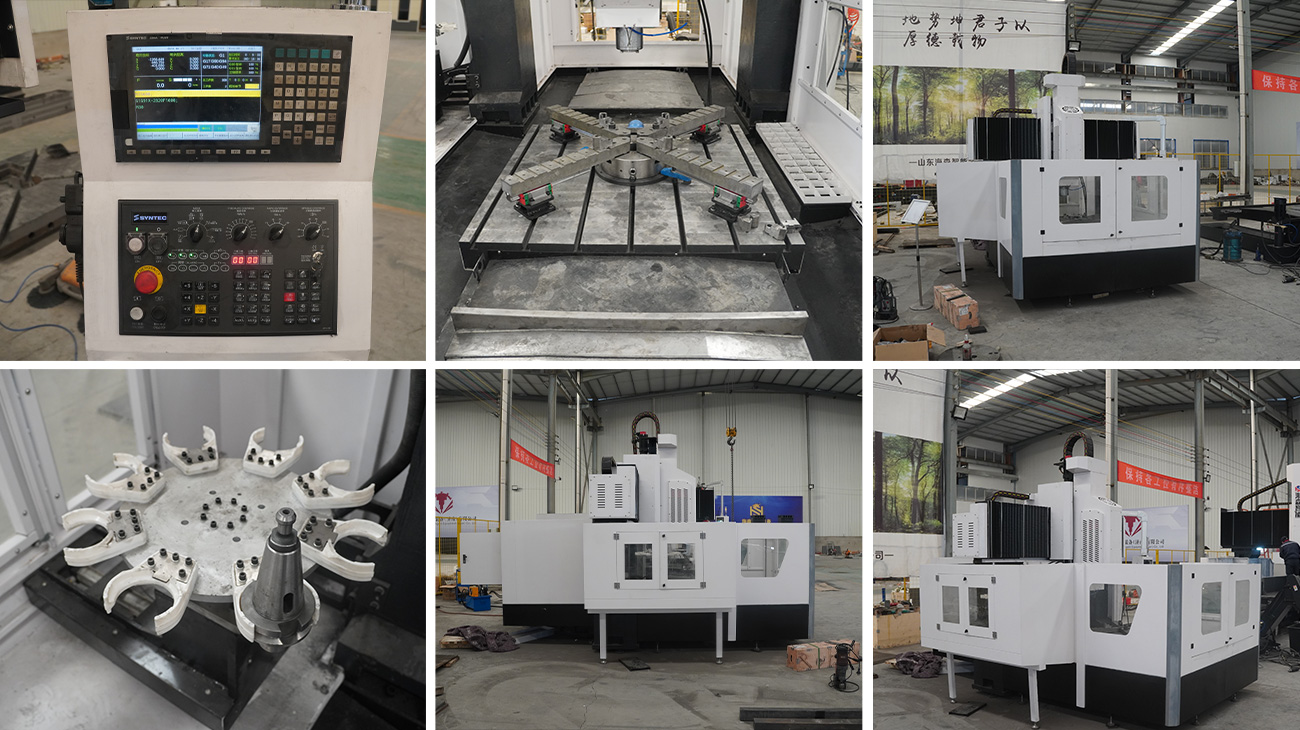

tool magazine

Knife library capacity (pieces)

24

Maximum tool diameter/length/weight

Class 78/300/8

Knife changing time (solid disk type)

1.75

transmission

Specifications of ball screws for X, Y and Z axes

4012

X, Y, Z axis quick movement speed (m/min)

20、20、20

Specifications of X, Y and Z axis rails

XYZ:RGH45HA

Connection mode of X, Y and Z motors

direct connection

any power-generating or power-driven machine

Main motor parameters (power KW)

15~18.5

torsion N.m

95.4

aggregate capacity （KW）

35

accuracy

positioning accuracy （mm）

0.01

Repeat positioning accuracy (mm)

0.008

other

Machine weight (ton)

8

Overall size of the machine

3750×2650×3100

system

No programming for FANUC

(Nexa, Mitsubishi, KND)
